PRODUCT DESCRIPTION

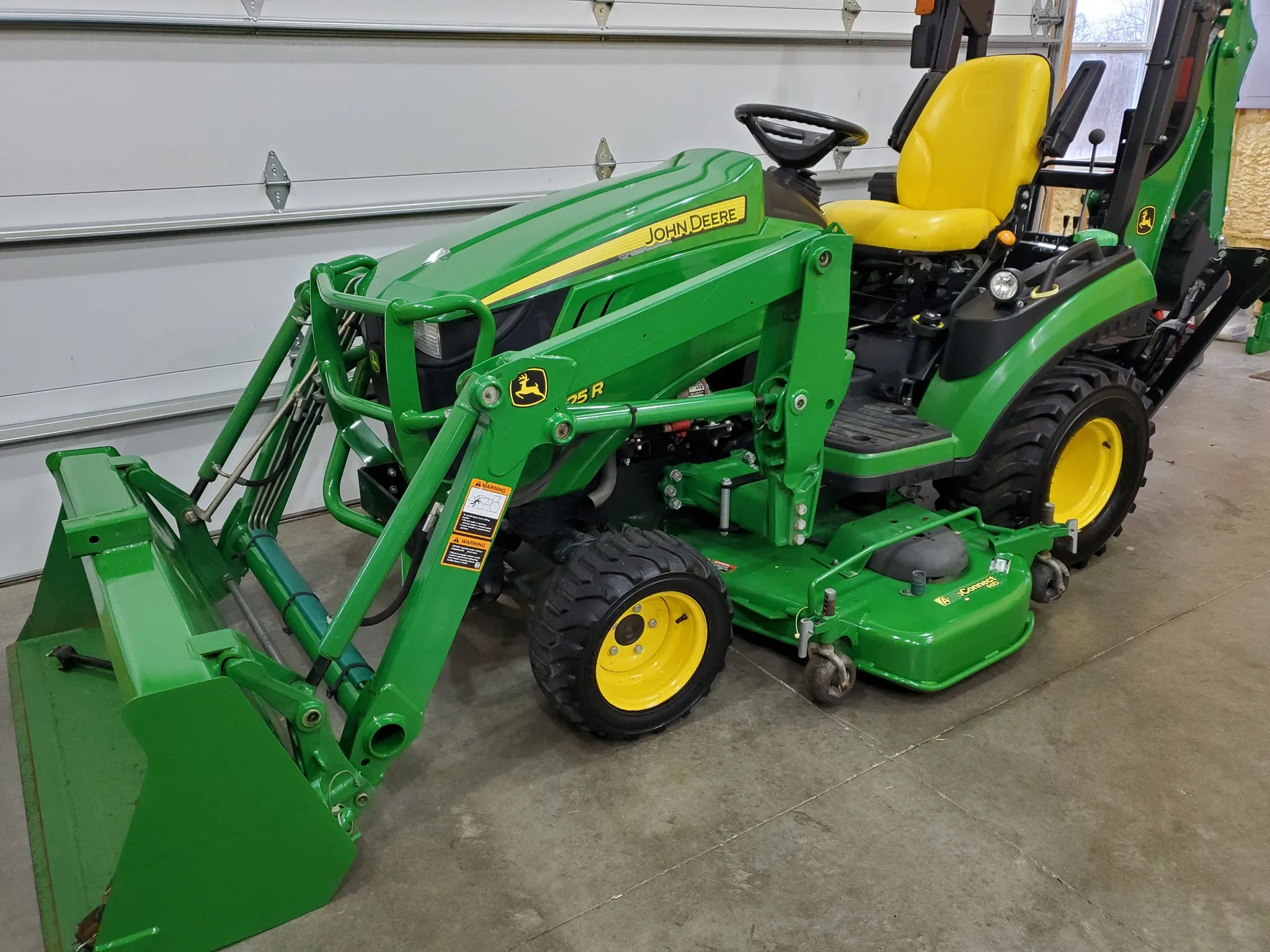

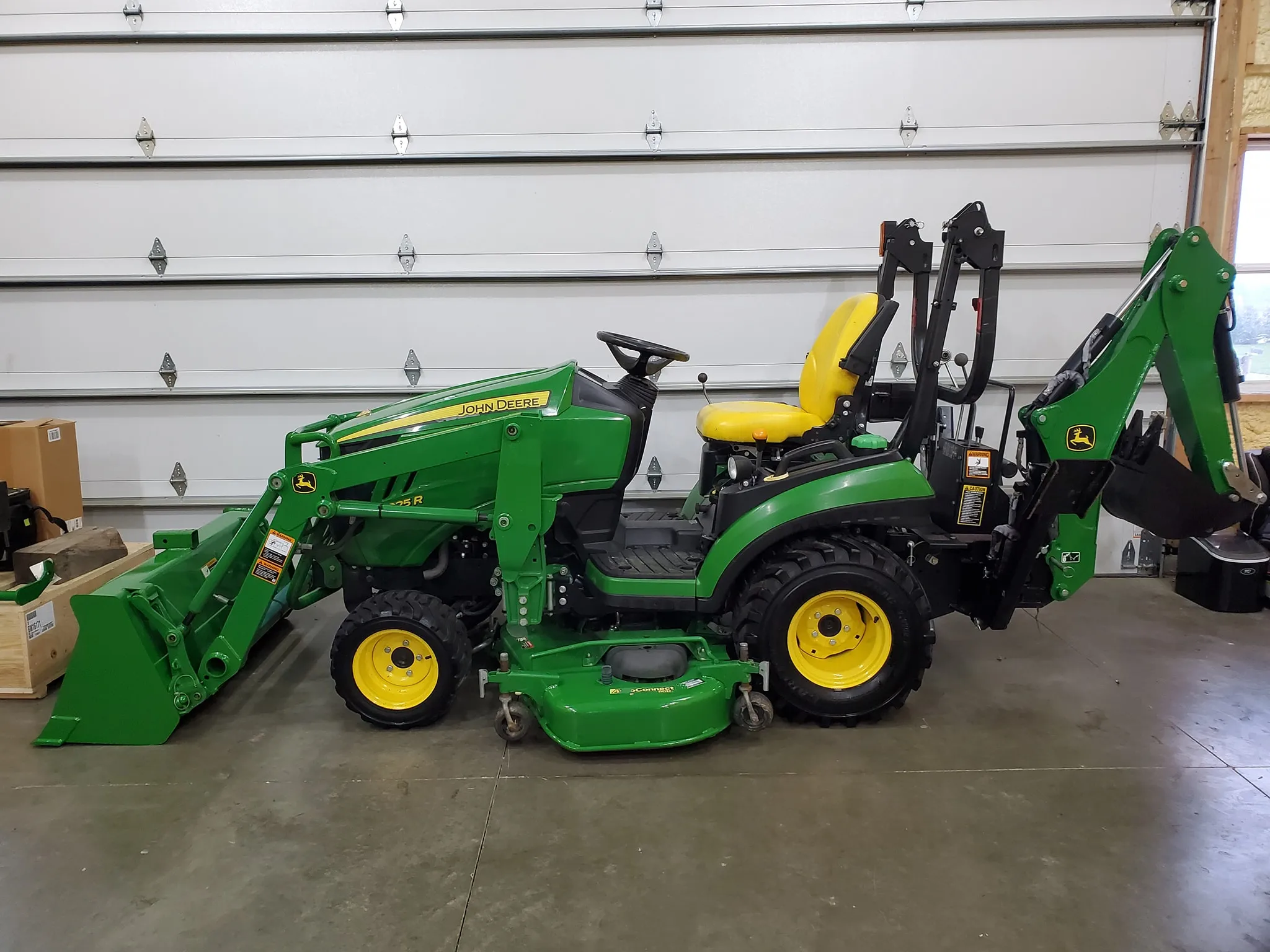

John Deere 1025R Compact Utility Tractor — Front Loader + Rear Backhoe + Mower
A versatile diesel-powered compact tractor designed for homeowners, landscapers, farms, contractors and property-maintenance professionals. With its front loader, rear backhoe and optional mid-mounted mower deck, the 1025R can handle mowing, digging, loading, landscaping, material handling, trenching and general property maintenance.
Specification
John Deere 1025R
Engine
Yanmar 3TNV80F-NCJT
Engine type
3-cylinder diesel
Displacement
1.267 L / 77 cu in
Rated engine power
24 hp / 24.2 PS
Rated engine speed
3,200 rpm
Cooling
Liquid cooled
Transmission
Hydrostatic, 2-range
Drive
4WD
PTO
Independent rear & mid PTO
Rear hitch
Limited Category 1
Hydraulic pump output
24 L/min / 6.3 gpm
Wheelbase
1,450 mm
Approx. shipping weight
706 kg open station
ROPS
Foldable Roll-Gard ROPS
Steering
Hydraulic power steering
Fuel
Diesel
John Deere lists the 1025R at 24 hp, 1.267 L displacement, hydrostatic two-range transmission, Category 1 limited rear hitch and 24 L/min hydraulic pump output.
FRONT LOADER
John Deere 120R Loader
* Quick-Park mounting system
* Easy attachment/removal
* Loader lift height: approximately 1,828 mm / 72 in
* Available mechanical self-leveling configuration
* Loader bucket suitable for soil, gravel, mulch, snow and general materials
* Optional bucket configurations available
John Deere’s current specifications list the 120R MSL on the 1025R at 680 lb / 309 kg lift capacity and a 72-in / 1,828-mm lift height.

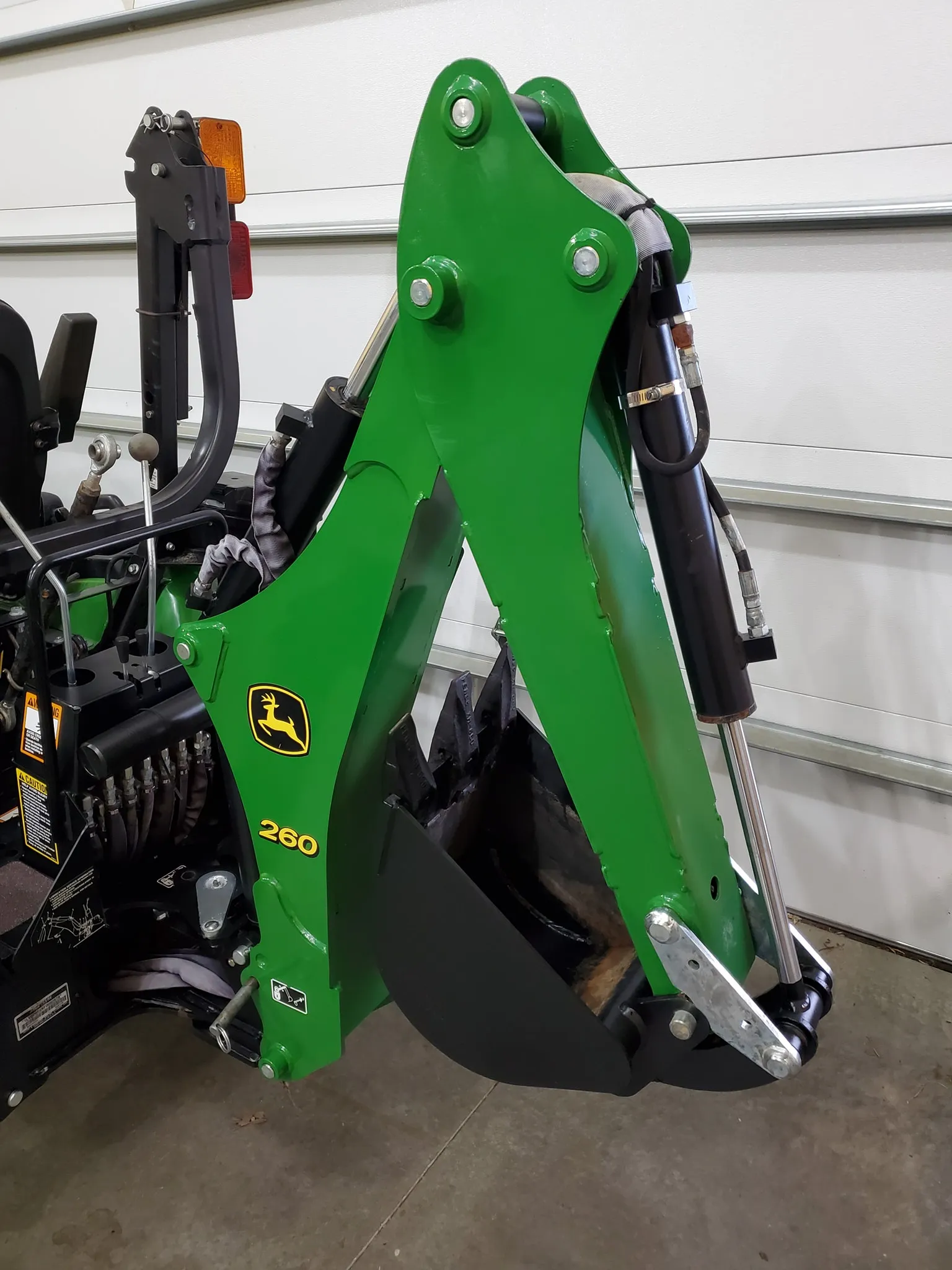

REAR BACKHOE
John Deere 260B Backhoe
* Digging depth: approximately 1.89 m / 6 ft 2 in
* Swing angle: 150°
* 12-in digging bucket
* Hydraulic stabilizers
* Two-lever controls
* Heavy-duty digging cylinders
* Subframe mounting
* Power-Beyond hydraulics
* Optional trenching buckets and ripper
John Deere’s published specifications for the 260B list a 6-ft 2-in digging depth, 150° swing angle, 12-in bucket and hydraulic stabilizers.

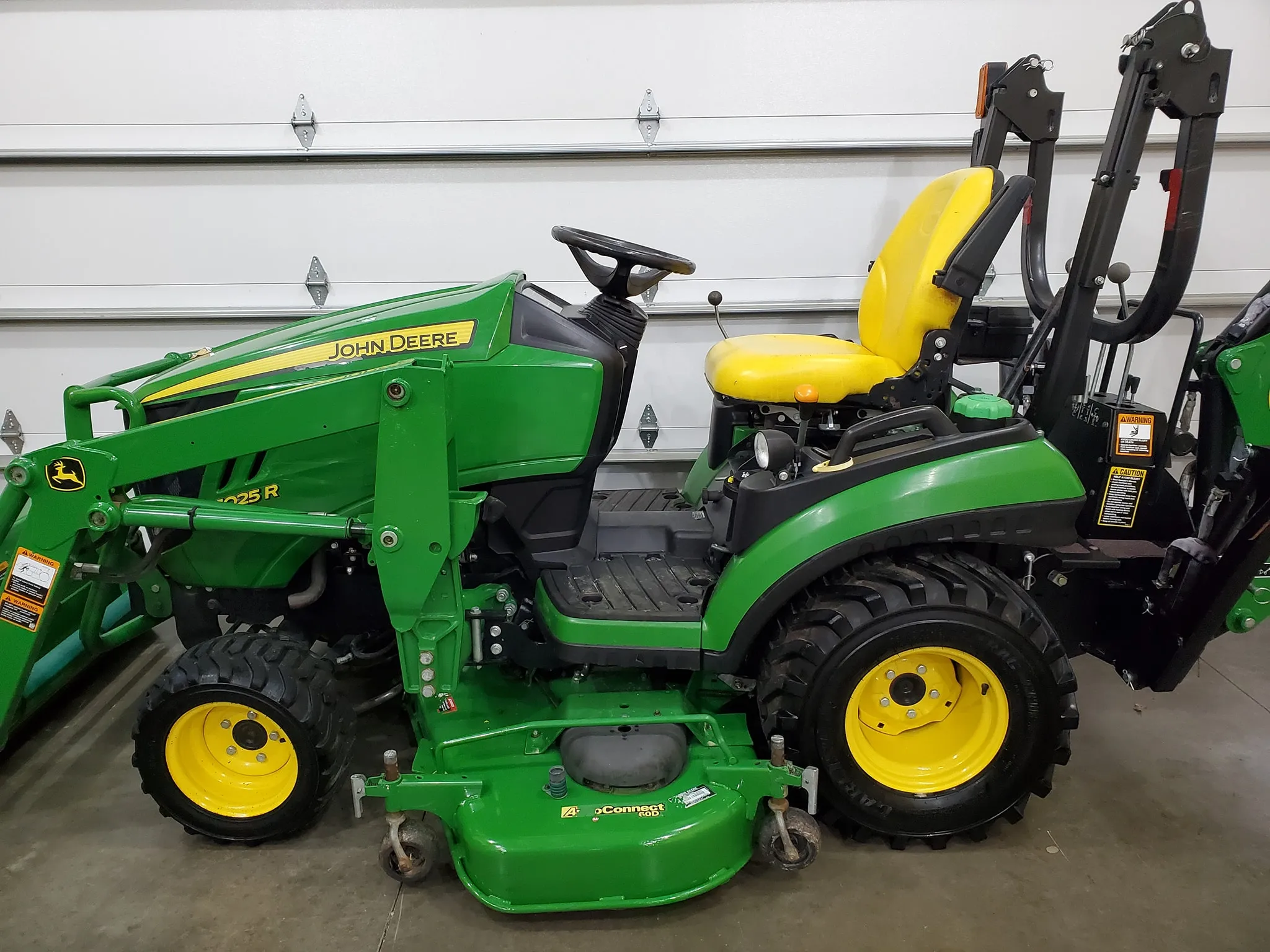

MOWER CAPABILITY
The 1025R can be equipped with a mid-mounted mower deck, making it suitable for lawn and property maintenance as well as loader/backhoe work.
Available mower configurations include approximately:
* 54-inch / 137 cm mower deck
* 60-inch / 152 cm mower deck
* 3-blade cutting system
* Mid-mount installation
* AutoConnect™ mower deck system available
KEY CUSTOMER BENEFITS
3 Machines in 1
🌱 Mowing — maintain lawns, gardens, estates and large properties.
🚜 Loading — move soil, gravel, sand, mulch, firewood and other materials.
⛏️ Digging — excavate trenches, planting holes, drainage channels and foundations.
🏡 Property Maintenance — ideal for farms, estates, landscaping businesses, nurseries and contractors.
⚙️ Compact & Maneuverable — designed to work in areas where larger construction equipment cannot easily operate.
