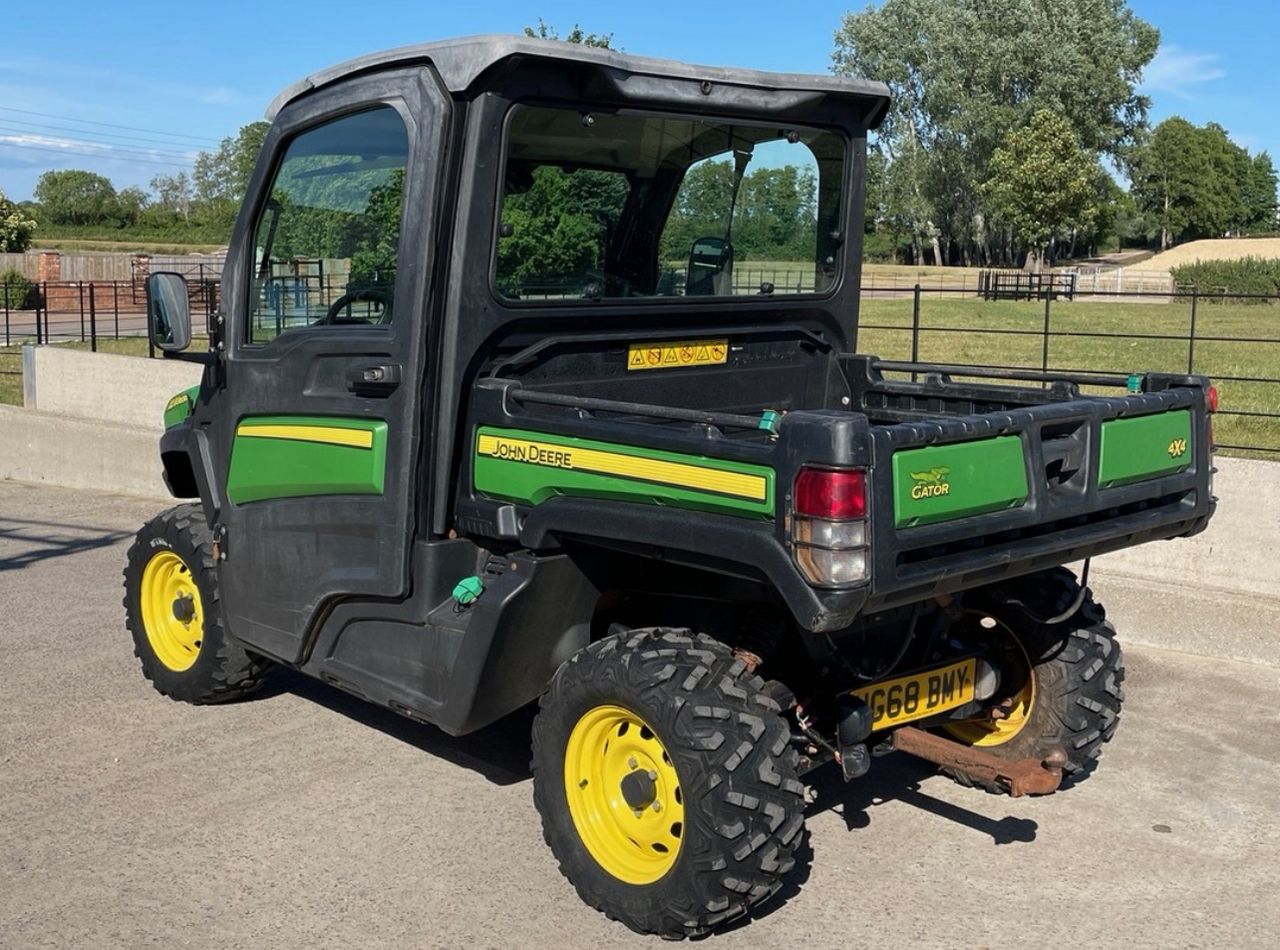

JOHN DEERE GATOR
Heavy-Duty Utility Vehicle | UTV / Side-by-Side
PRODUCT OVERVIEW
The John Deere Gator™ is a versatile utility vehicle designed for demanding work in agriculture, farms, estates, construction sites, landscaping, forestry, property maintenance and recreational applications.
Built around a combination of strong hauling capability, towing performance, durable construction and off-road mobility, the Gator is suitable for transporting people, tools, equipment and materials across a wide range of working environments.
KEY FEATURES
* Heavy-duty utility vehicle construction
* Excellent off-road capability
* Available in gasoline, diesel and electric configurations depending on model
* 2-, 3- and 4-passenger configurations depending on model
* Large rear cargo box
* High payload capacity
* Strong towing capability
* Selectable 4-wheel drive on applicable models
* Independent suspension on applicable models
* Hydraulic disc brakes on selected models
* Durable steel frame construction
* Receiver hitch for towing applications

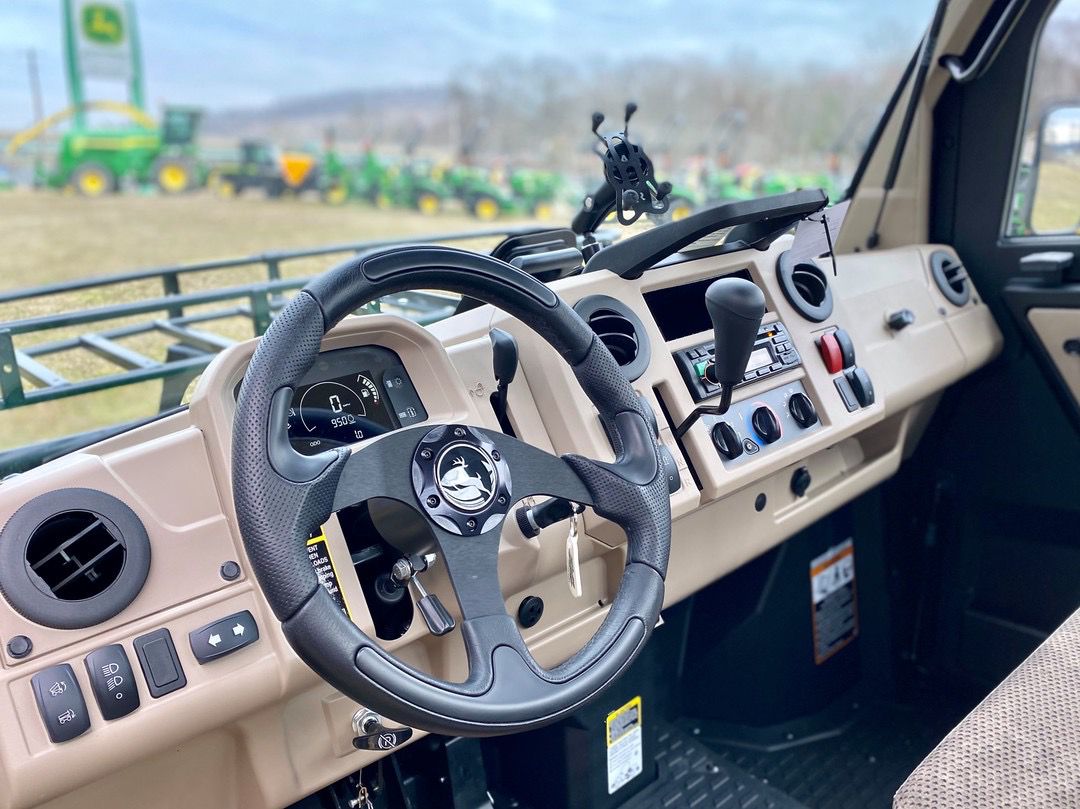

* Comfortable operator station
* Excellent visibility and practical storage
* Suitable for agricultural and commercial work
TYPICAL GATOR WORK-SERIES SPECIFICATIONS
Specification John Deere Gator HPX815E
Engine 3-cylinder, 4-cycle diesel
Engine displacement 854 cc
Engine power 18.2 hp / 13.6 kW
Cooling Liquid cooled
Transmission Continuously Variable Transmission (CVT)
Drive Selectable 4WD
Front differential Limited-slip
Rear differential Locking differential
Fuel capacity 27.6 L
Maximum speed Approx. 40 km/h
Payload capacity 635 kg
Cargo-box capacity 454 kg
Towing capacity 590 kg
Ground clearance 152 mm
Vehicle weight Approx. 728 kg
Length 3,022 mm
Width 1,486 mm
Height 1,867 mm
Wheelbase 1,910 mm
Seating 2 persons
Cargo box Heavy-duty utility box
Hitch 2-inch receiver
Brakes Hydraulic disc
Front suspension Independent
Rear suspension Coil-over shock
Fuel Diesel
These specifications are based on John Deere’s published HPX815E data. (Deere)

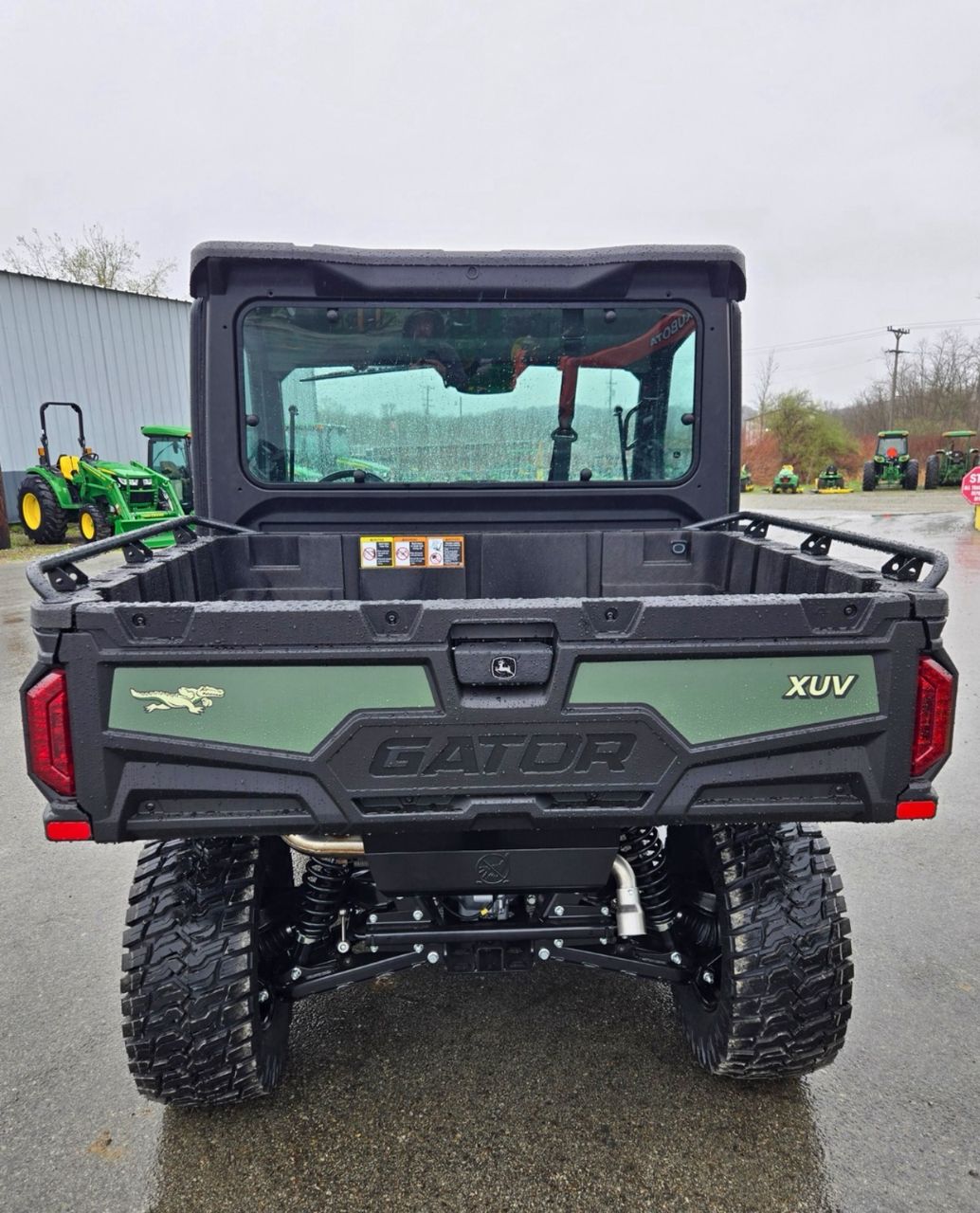

CARGO & HAULING

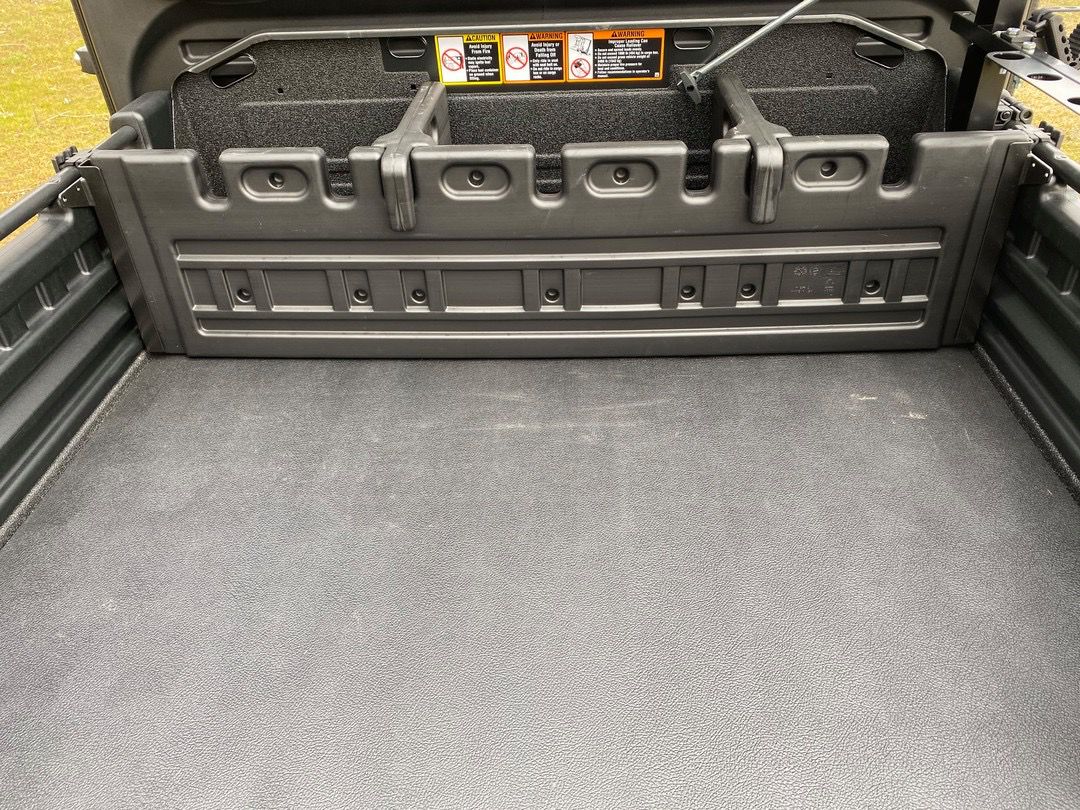

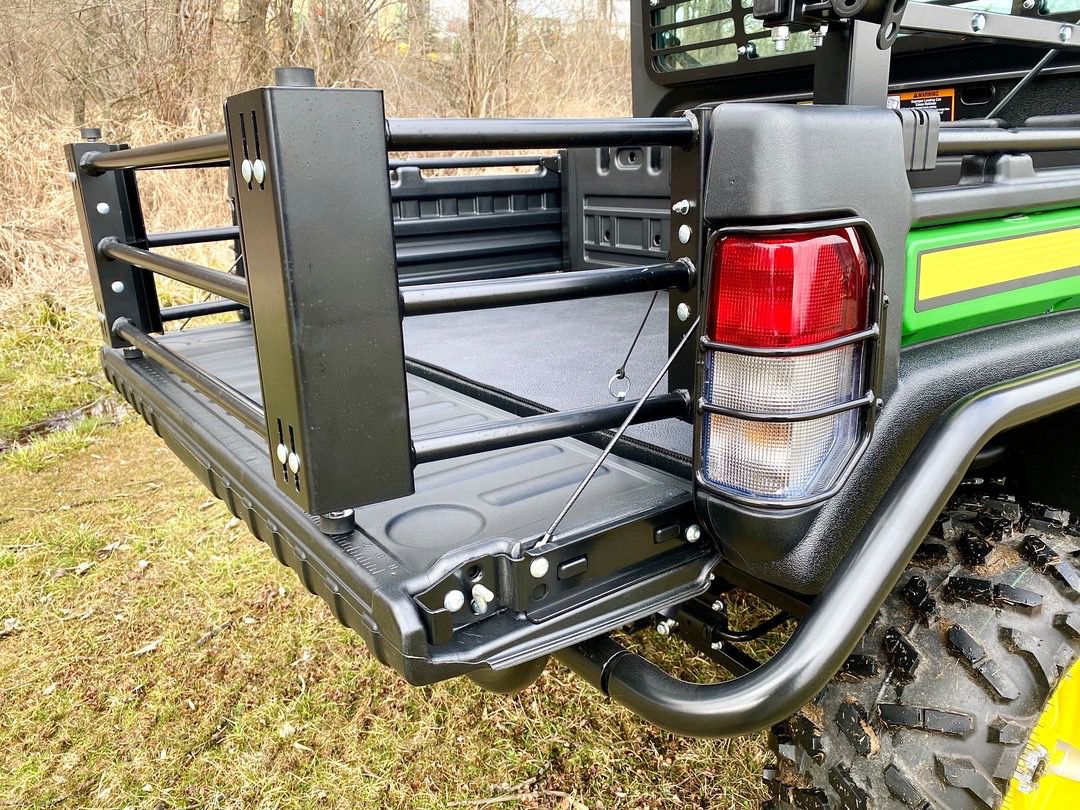

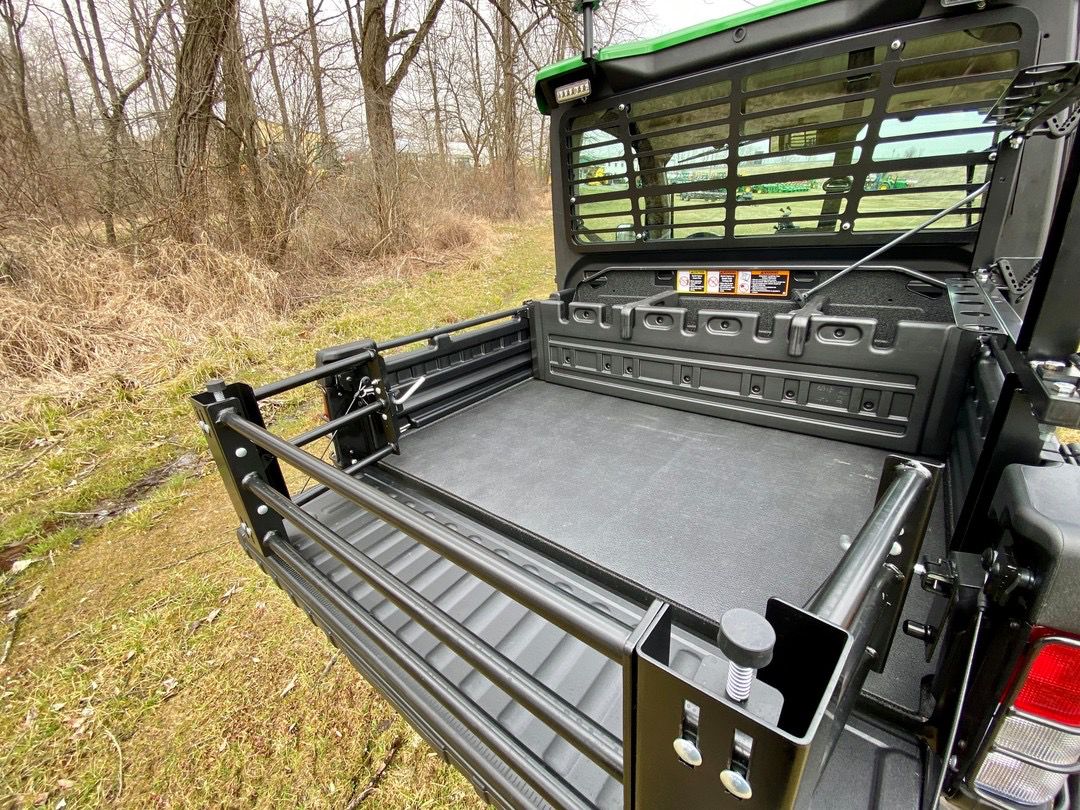

Cargo Box
* Cargo box dimensions: approximately 1,143 × 1,320 × 305 mm
* Cargo-box load capacity: 454 kg
* Designed for tools, agricultural materials, equipment and general cargo
* Practical tailgate and utility-box configuration
Vehicle Payload
Up to 635 kg, depending on configuration.
Towing
Up to 590 kg for the HPX815E Work Series.
The exact payload and towing limits depend on the specific Gator model and configuration. (Deere)

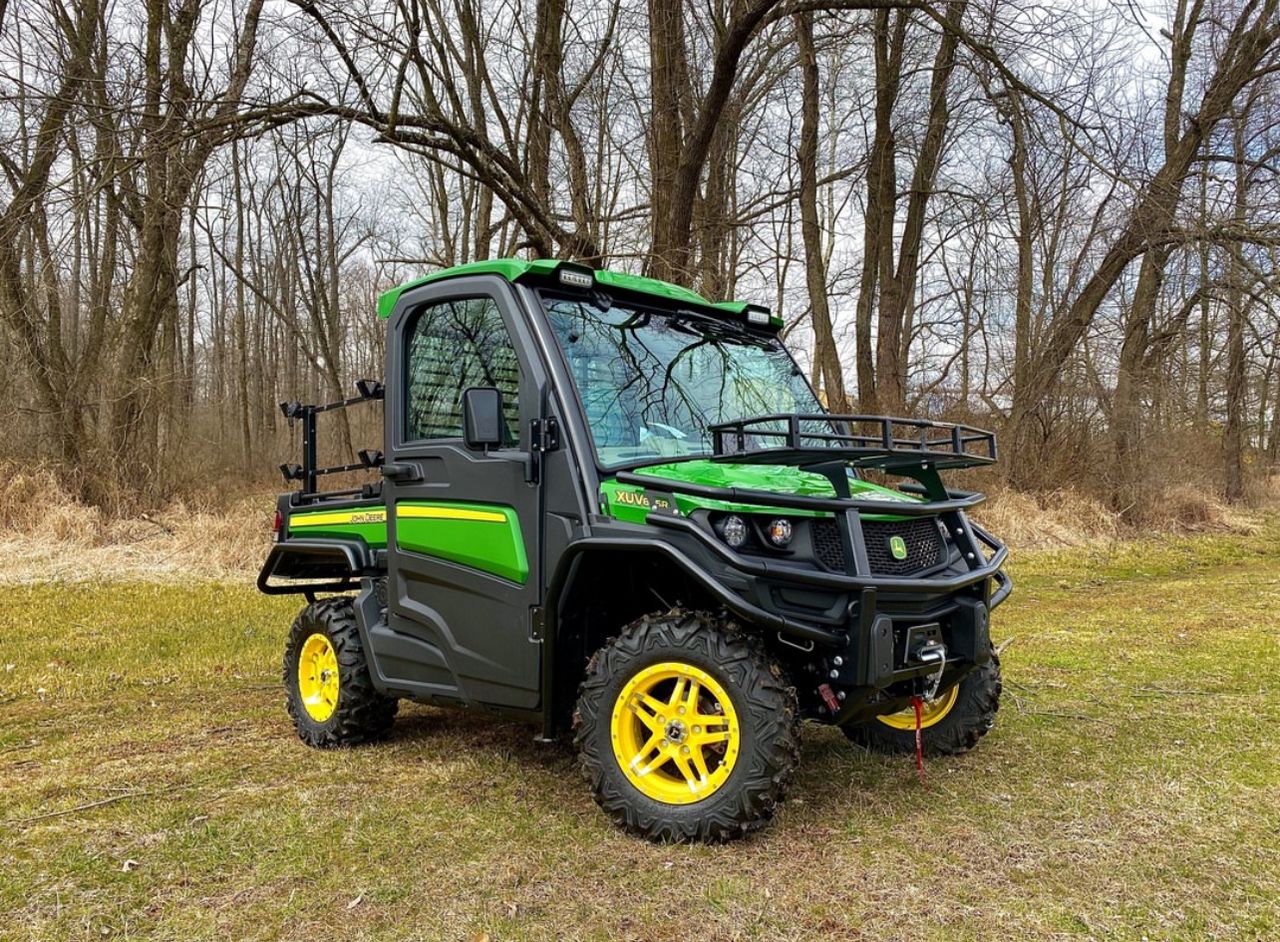

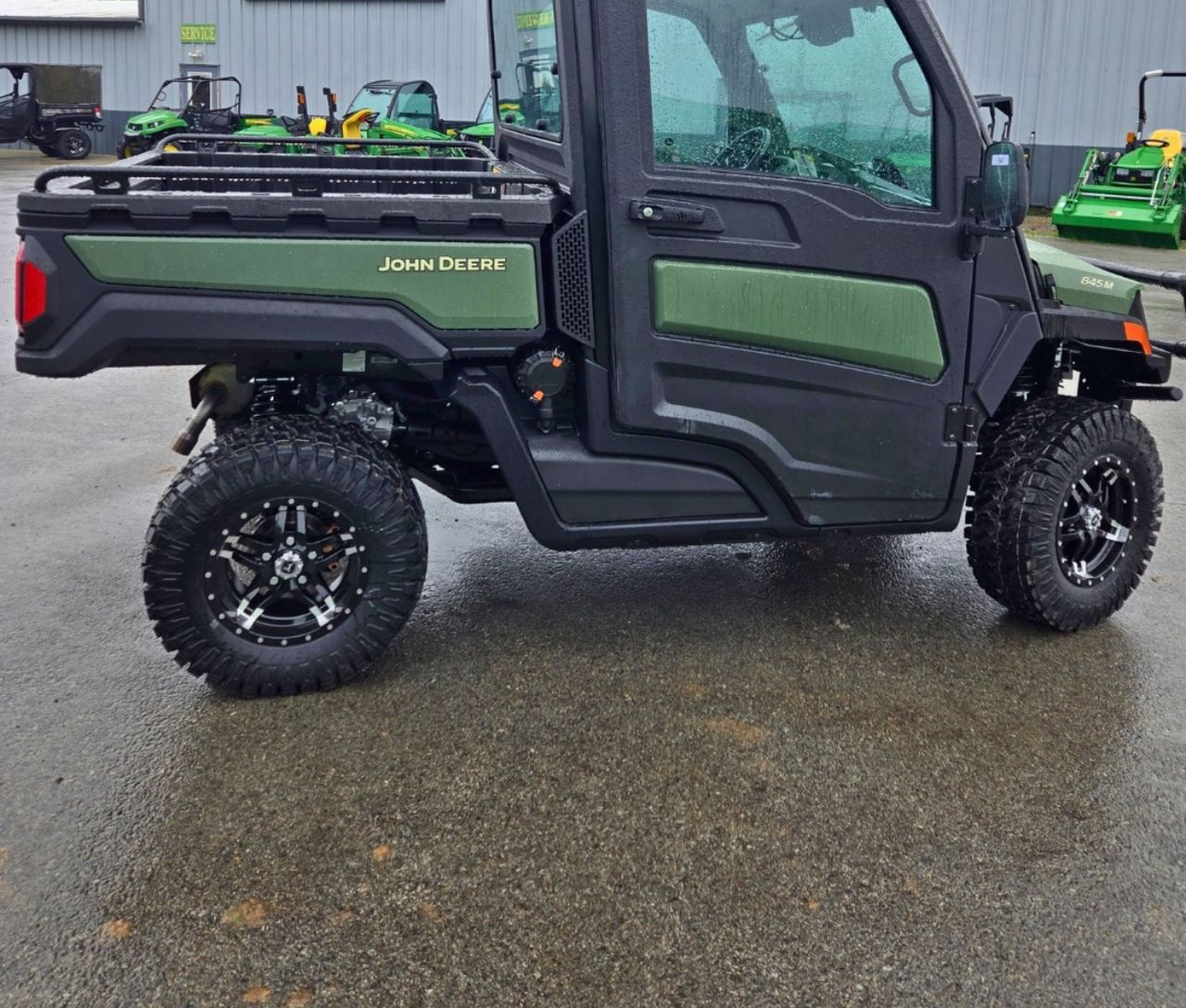

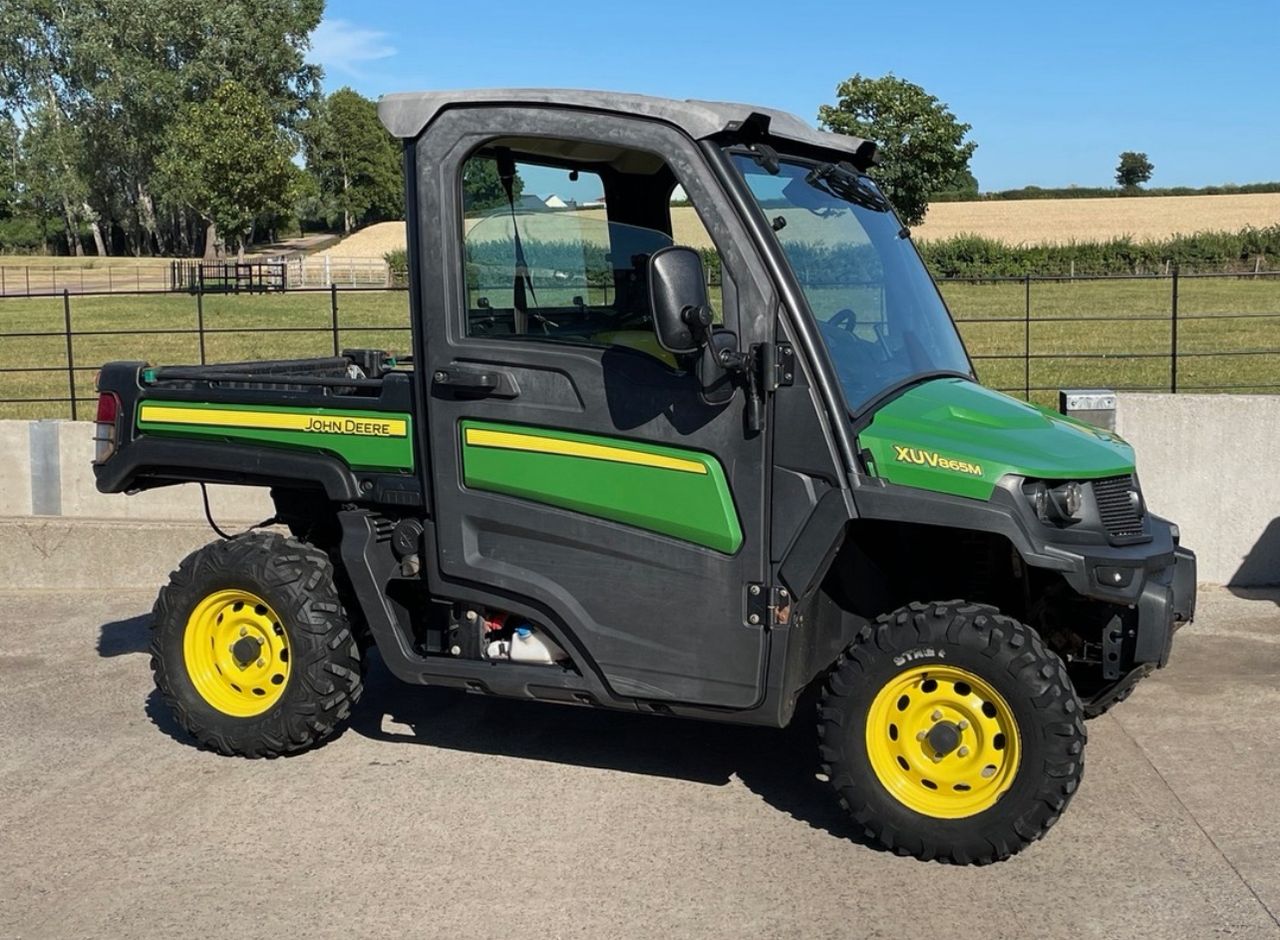

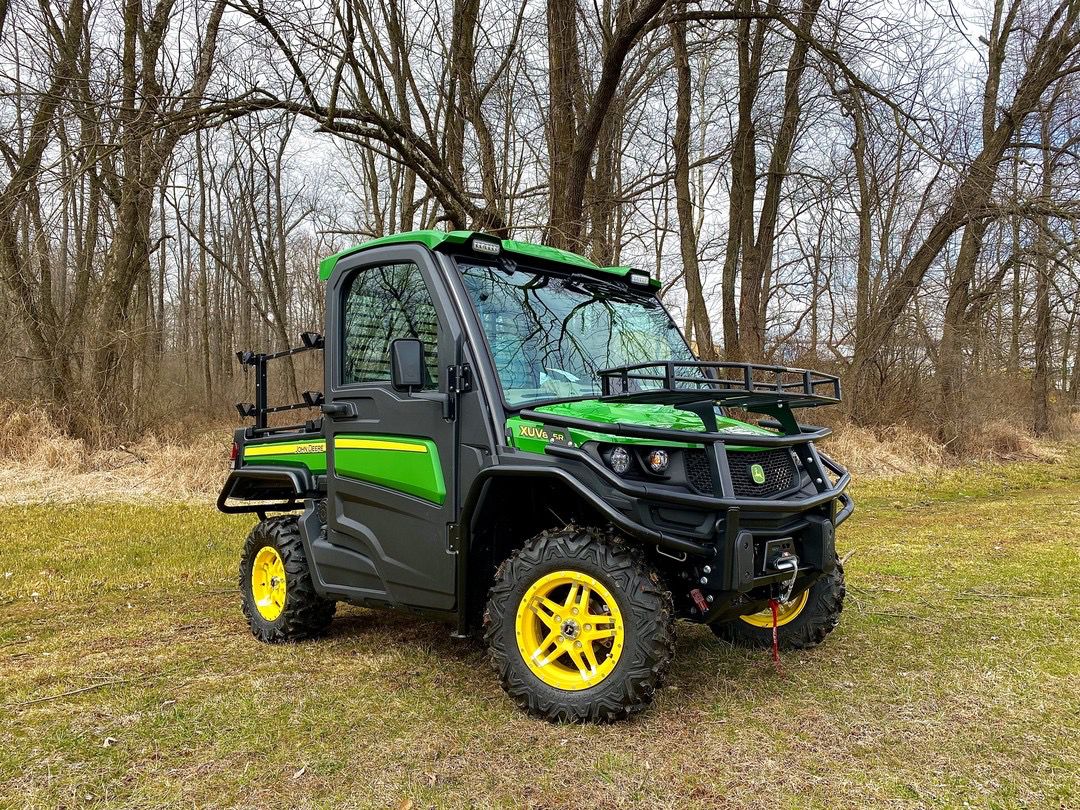

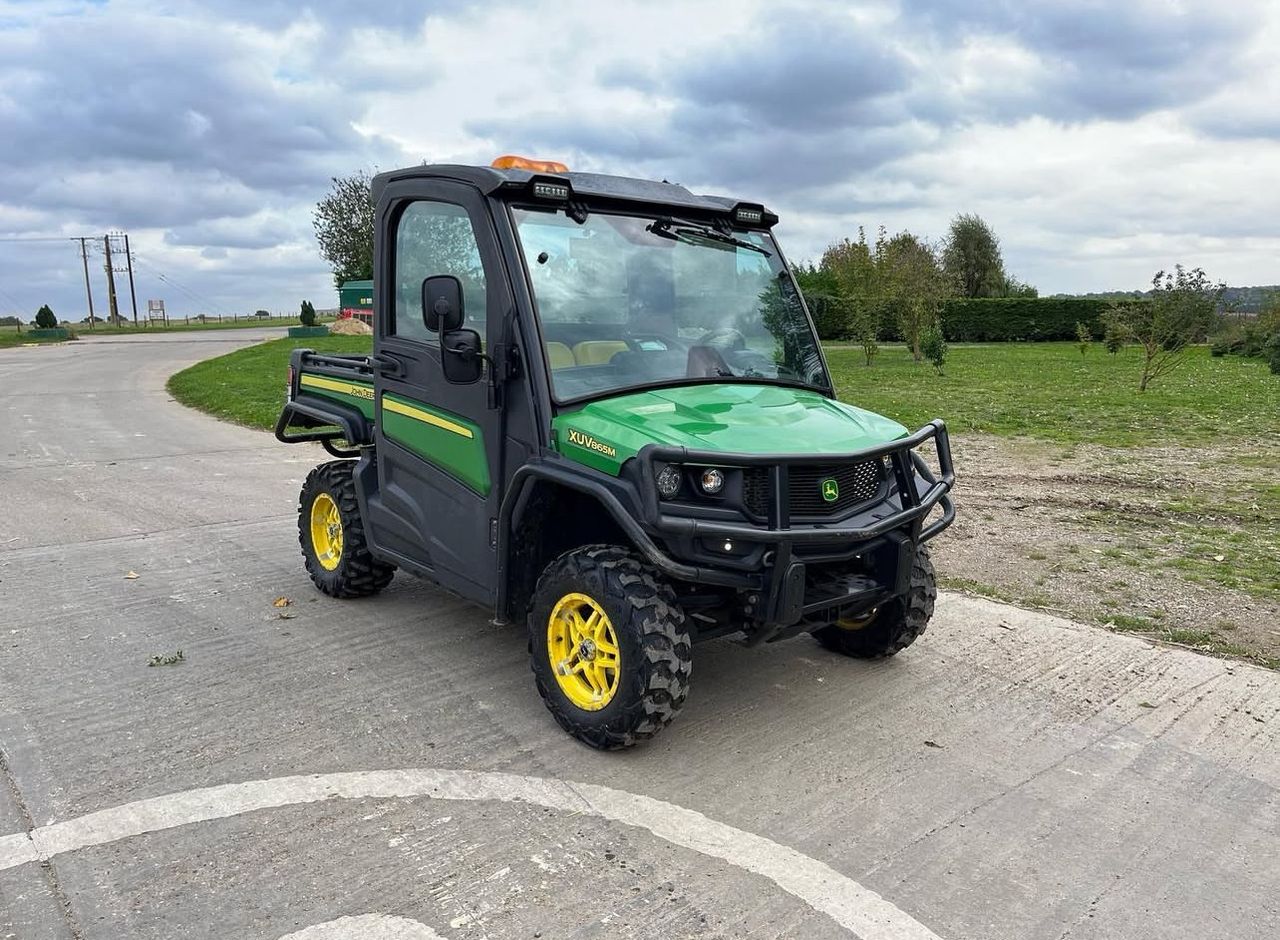

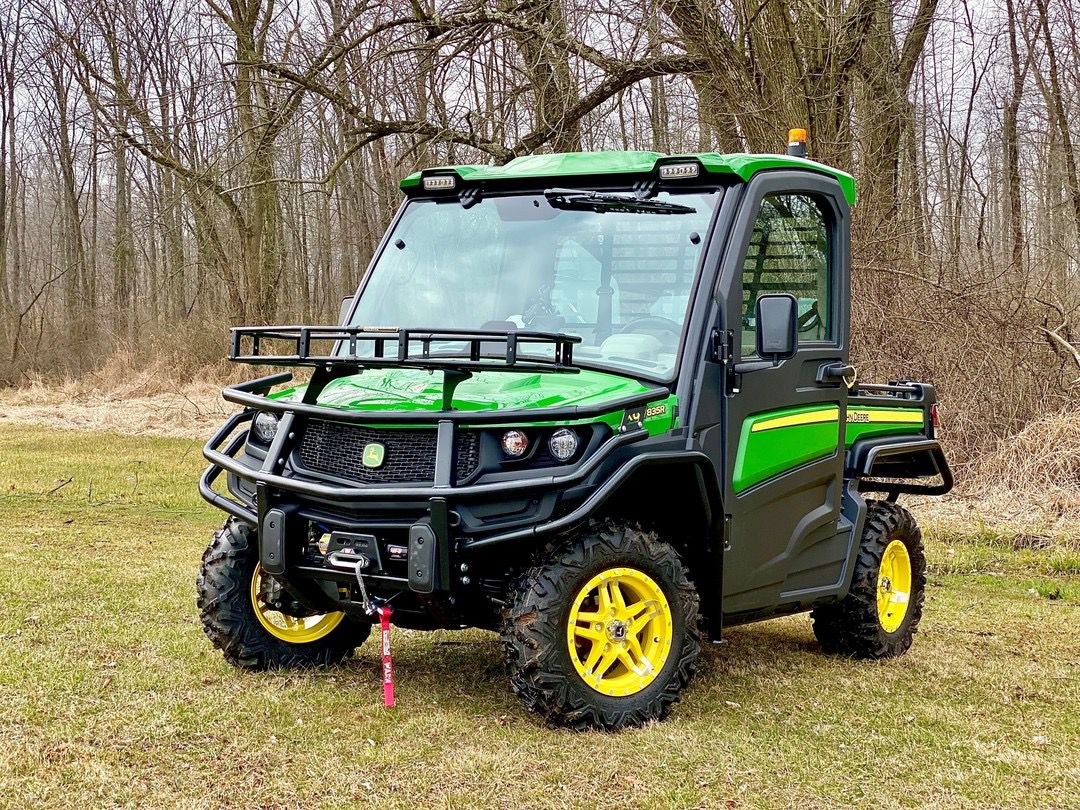

FULL-SIZE GATOR XUV RANGE

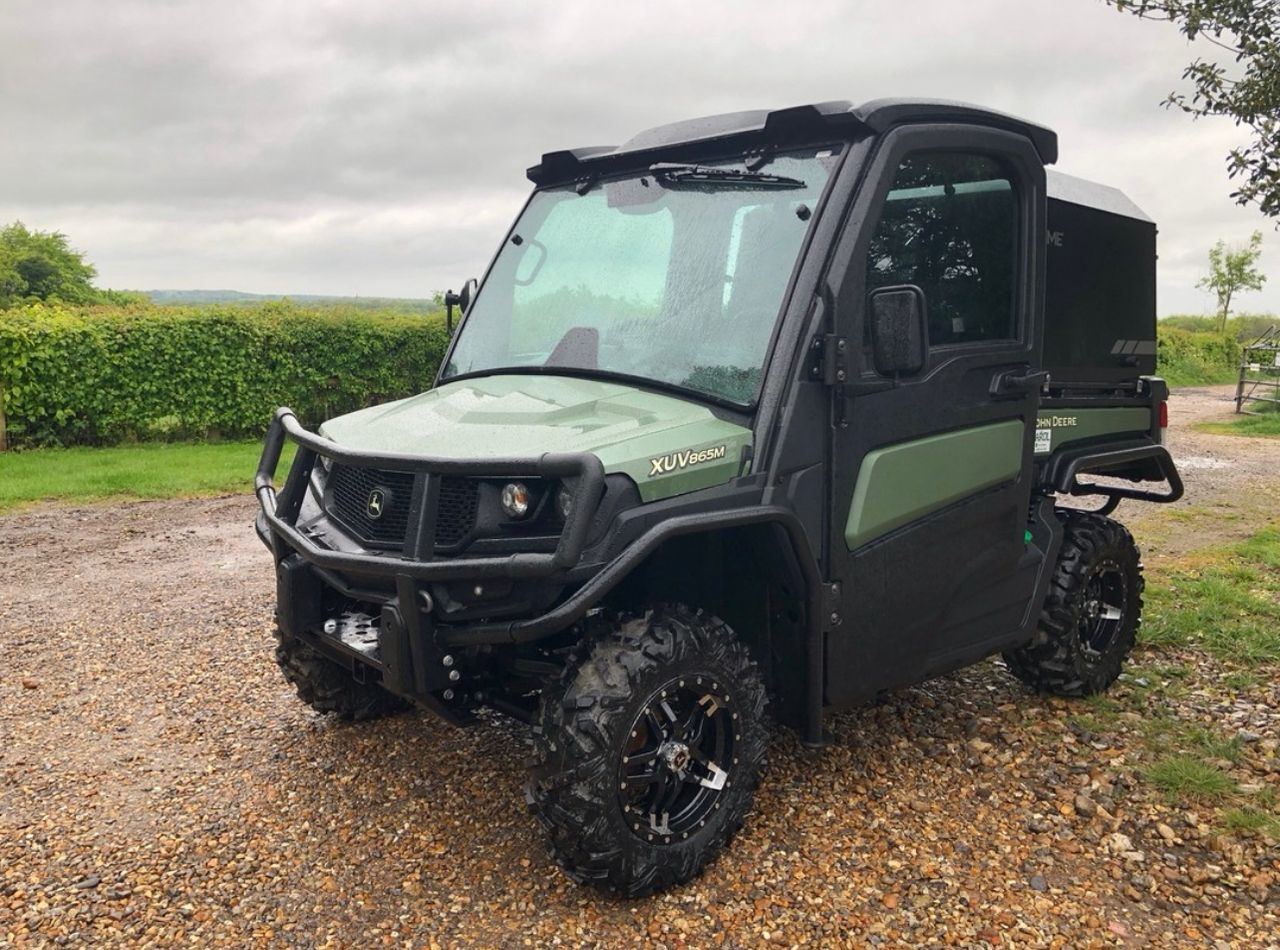

For customers requiring substantially greater towing performance, the Full-Size Gator XUV range includes models such as the XUV845M, XUV875M, XUV835M and XUV865M.
Depending on model, John Deere lists towing capacity of up to 4,000 lb / 1,814 kg for several 3-passenger full-size models. (Deere)
Available configurations may include:
* Gasoline engine
* Diesel engine
* 3-passenger configuration
* 4-passenger configuration
* Power steering
* HVAC-equipped cab
* Premium cab
* 4WD
* Heavy-duty cargo box
* High-capacity towing system
ELECTRIC GATOR OPTION
For customers looking for an electric utility vehicle, the John Deere GX Electric Utility Vehicle offers:
* 51.2 V lithium-ion battery
* 5.376 kWh nominal battery capacity
* Maximum speed: approximately 31.4 km/h
* Payload capacity: 544 kg
* Towing capacity: 680 kg
* Cargo-box capacity: 363 kg
* Cargo-box volume: 367 L
* Ground clearance: 150 mm
* Vehicle weight: approximately 527 kg
* Length: 3,120 mm
* Width: 1,360 mm
* Height: 1,880 mm
* 2-inch receiver hitch
The GX Electric is a useful option for customers seeking a quieter, battery-powered utility vehicle. (John Deere)
IDEAL APPLICATIONS
Agriculture & Farming
Transport feed, tools, fencing materials, crops and equipment around farms and agricultural properties.
Landscaping
Ideal for carrying gardening equipment, soil, plants, tools and other materials.
Construction
Useful for moving tools, building materials and equipment around job sites.
Estates & Property Management
Suitable for large private properties, resorts, golf facilities and maintenance operations.
Forestry
Designed to assist with transportation and utility work on challenging terrain.
Commercial & Industrial
Useful for warehouses, facilities, industrial properties and large outdoor work areas.
Recreation
Selected Gator models can also be used for outdoor recreation, hunting and general off-road transportation, subject to local regulations.
WHY CHOOSE A JOHN DEERE GATOR™
WORK HARDER. HAUL MORE. GO FURTHER.
The Gator combines the practicality of a utility vehicle with the hauling and towing capability required for demanding working environments.
Customer Benefits
✓ High payload capacity
✓ Strong towing performance
✓ Durable utility construction
✓ Off-road capability
✓ Practical cargo box
✓ Multiple engine options
✓ Multiple passenger configurations
✓ Agricultural and commercial applications
✓ Available electric models
✓ John Deere engineering and established Gator platform
IMPORTANT SPECIFICATION NOTICE
Specifications can vary according to model, model year, market, engine, cab configuration and optional equipment. Customers should confirm the exact technical specification of the particular Gator being offered before purchase.
Manufacturer: John Deere
Product: Gator Utility Vehicle
Category: UTV / Utility Vehicle / Side-by-Side
Applications: Agriculture, landscaping, construction, forestry, property maintenance and recreation
Technical information compiled from John Deere published specifications and should be verified against the specific model supplied.
